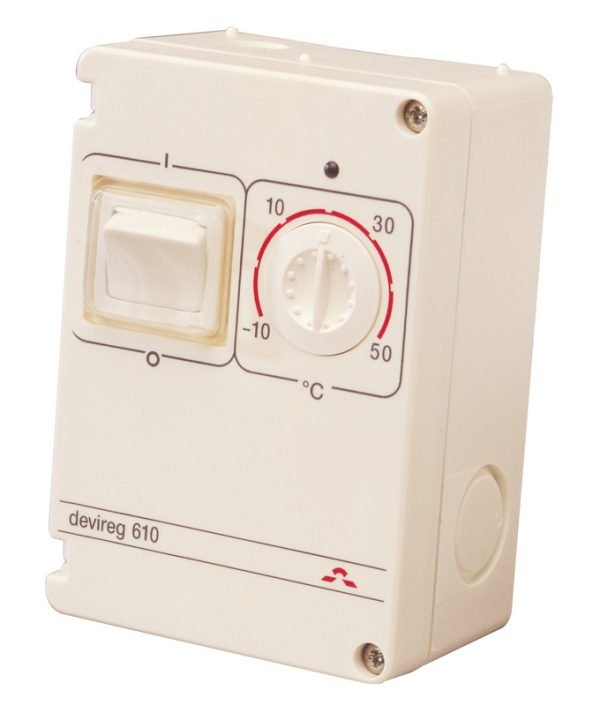

Devireg 610 Weatherproof Thermostat
The Devireg 610 is a versatile thermostat for use in many applications. It has an IP rating of 44, so can be used in many indoor and outdoor applications. It can be wall-mounted or fixed to a pipe, and it has a wide control range of -10°C to 50°C.
Please click HERE to see all Brochures, Spec-Sheets & Installation Guides
- Description
- Technical Data
- Stock Control
Description
The Devireg 610 is a versatile thermostat for use in many applications. It has an IP rating of 44, so can be used in many indoor and outdoor applications. It can be wall-mounted or fixed to a pipe, and it has a wide control range of -10°C to 50°C.
Related Downloads
| Technical Data | |
| Rated Voltage | 240V ~ |
| Temperature Range | -10° to +50°C |
| Change-over Switch | NO/NC |
| Load | 10Amps/10Amps |
| Inductive Load | 3 Amps |
| Switch | 2-Pole |
| Hysteresis (degree of accuracy) | 0.4°C |
| Control Light | LED diode |
| Sensor Types | NTC 15kOhm |
| Warranty | 2 years |
| Stock Program | |||
| Product Code | Sensor | Moisture Proof | Voltage |
| 19116284 | Floor Probe | IP 44 | 240V |
| Pipe Fittings | ||
| Code No. | Application | Material |
| 19116920 | Pipe Fixing Band | Stainless Steel |
