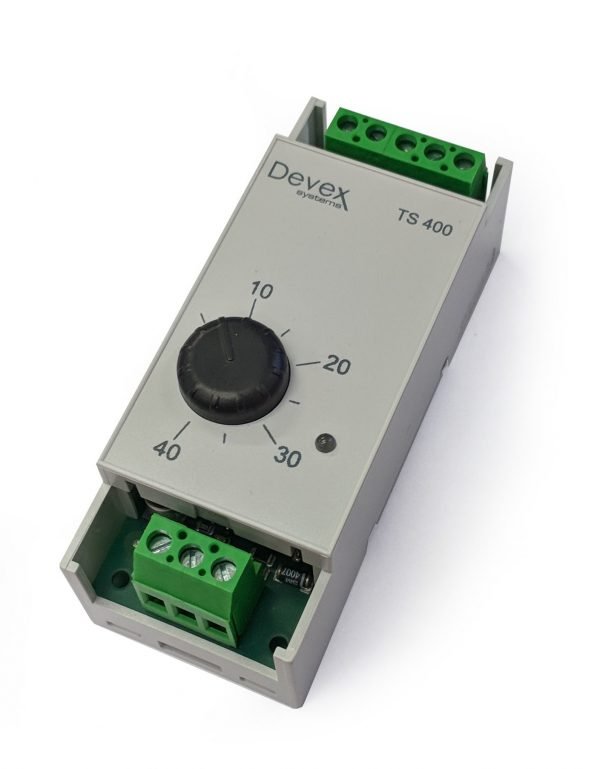

X thermostat™ TS-400
Description
- Din-rail thermostat suitable to be mounted in the switchboard.
- Compatible with all home-automation systems such as C-Bus.
- Recommended for systems connected to Off-Peak power supply.
- Floor (external sensor)
- Relay 16A 250Vac resistive load (AC1)
- Description
Description
Technical Characteristics
| Sensing type | Floor (external sensor) |
| Mounting | DIN Rail mounted |
| Measuring accuracy | +/- 0.5°C |
| Operating temperature | 0°C – 50°C |
| Setting temperature range | 5°C – 45°C TBC |
| Regulation characteristics | Static differential |
| Electrical protection | Class II – IP20 |
| Main switch | No |
| Power supply | 230Vac +/- 10% 50Hz |
| Output | Relay 16A 250Vac resistive load (AC1) |
| Type of external sensor | NTC – 15 kOhms at 25°C |
