Xcable™ CK-17
In Screed Heating Cable (c/w Single Cold Tail)

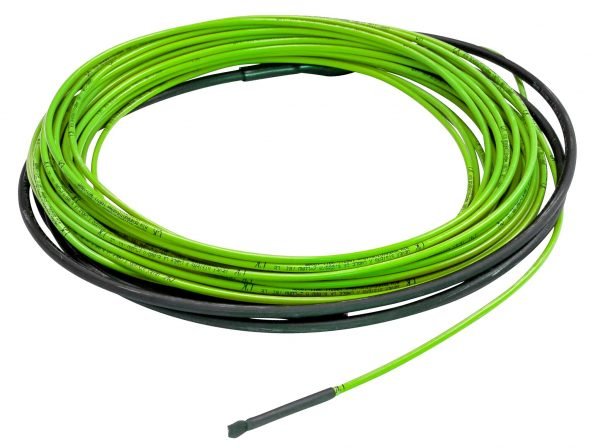

Devex Systems’ Xcable™ CK-17 electric floor heating cable uses a twin conducting heating cable for ease of installation. This flexible cable made with fluoro-polymer and durable PVC outer sheath can be easily installed directly on a structural slab, fibre cement sheet, or F-Board insulation and into 20-25mm screed bed. This system best operates on a “time of use” tariff as it is quick to come to the desired temperature. The X cable is rated at 17 watts per meter and comes with a 3m single cold tail. The cables comply with IEC60800:2009.
We recommend the use of F-Board Insulation with electric floor heating to improve warm up times and reduce running costs.
- 20 year warranty
- Output power based on 230 volts
- Maximum Operating Temperature: +70°C
- Description
Description
Technical Features
| CONSTRUCTION | |
| Cable core | Twin Conductor; single strand |
| Insulation | Fluoro-polymer first layer around each core with both cores embedded in a cross-linked polyethylene second layer |
| Protection screen | Aluminium foil with copper drain wire |
| Outer Sheath | PVC |
| Outer cable diameter | 5.0 – 5.4mm |
| MECHANICAL PROPERTIES | |
| Minimum Bending Radius | 40mm |
| Pulling Strength | 300 N |
| Deformation Strength | 1,500 N |
| ELECTRICAL PROPERTIES | |
| Rated Voltage | 230 V |
| Watts Per Meter | 17 W/m |
| HEATING PROPERTIES | |
| Max Permitted Operating Temp | +70°C |
| Min Installation Temperature | -5°C |
| APPLICATION | |
| In-screed heating on concrete floors | ✓ |
| In-screed heating on FC sheet | ✓ |
| Feezers (frost heave protection) | ✓ |
| Frost protection | ✓ |
| Ice and snow melting | ✓ |
| Heating directly under tiles | ✗ |
| Heating in floors with thin levelling bed | ✗ |
| Heating of wooden floors | ✗ |
| In-slab (storage) heating in concrete floors | ✗ |
Stock Program
| Code No | Output | Description |
| A1B001 | 125 W | 8m Screed Heating Cable with 3m Single Cold Tail |
| A1B002 | 188 W | 12m Screed Heating Cable with 3m Single Cold Tail |
| A1B003 | 250 W | 16m Screed Heating Cable with 3m Single Cold Tail |
| A1B004 | 313 W | 20m Screed Heating Cable with 3m Single Cold Tail |
| A1B005 | 375 W | 24m Screed Heating Cable with 3m Single Cold Tail |
| A1B007 | 516 W | 31m Screed Heating Cable with 3m Single Cold Tail |
| A1B008 | 641 W | 39m Screed Heating Cable with 3m Single Cold Tail |
| A1B009 | 766 W | 47m Screed Heating Cable with 3m Single Cold Tail |
| A1B011 | 1,032 W | 62m Screed Heating Cable with 3m Single Cold Tail |
| A1B013 | 1,299 W | 77m Screed Heating Cable with 3m Single Cold Tail |
| A1B014 | 1,548 W | 93m Screed Heating Cable with 3m Single Cold Tail |
| A1B015 | 1,815 W | 108m Screed Heating Cable with 3m Single Cold Tail |
| A1B016 | 2,081 W | 123m Screed Heating Cable with 3m Single Cold Tail |
| A1B018 | 2,597 W | 154m Screed Heating Cable with 3m Single Cold Tail |
| A1B019 | 3,114 W | 185m Screed Heating Cable with 3m Single Cold Tail |
| A1B020 | 3,647 W | 215m Screed Heating Cable with 3m Single Cold Tail |
